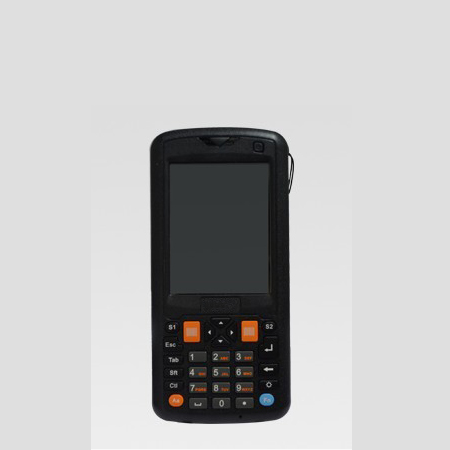

ACT-9200
Support Windows CE 5.0 operating system and IP54 sealing with drop capability from 1.2/1.5(with rubber) meters onward. This device has features of shock-proof, drop-proof, dustproof and high-/low-temperature resistant. In addition, the dual power supply make it a ideal for field work force applications.
Product Feature
（1）Compact, Lightweight and Portable
3.2 inch touch color screen, QVGA 320*240 resolution, support hand-writing. Highly compatible and reliable to ensure rapid
application development and data integrity.
（2）Excellent Data Capture
Integrated with 1D and Wi-Fi. Optional with 2D barcode scanner and UHF/HF/LF RFID reader; Support Camera 2-3Megapixel;
Bluetooth and GPS.
（3）IP54 Industrial Standard Certified
With strong compatibility and stability. Sealing against dust and splash of water, well drop capability from 1.2/1.5 (with rubber)
meters onward.
（4）Dual Power Mode and Special Hand-strap Design
Dual power supply mode with long standby capacity to prevent data loss accidentally, and unique hand-strap design for
easy-to-carry.
（5）Multipath Communication, Bluetooth Weighting and Printing Function
Support Wifi, GPRS/GSM, WCDMA, CDMA2000, and special bluetooth printing and weighting function.
| Dimentions | Standard：150mm*70mm*25mm | |
| Weight | 240g | |
| Display | 3.2" TFT-LCD QVGA (240 x 320) color touch screen | |
| Keyboard | 28-29 keys (Number/Alphabetic keys, Directional button, Scan button) | |
| Input | Chinese,English,handwriting,support soft keyboard | |
| Power | Main Battery | 3.7 V 2800 mAh rechargeable lithium battery, |
| which can work for eight hours or above (depending on environment). | ||
| Slave Battery | 150 mAh, prevent data loss. Charging time: 3.5 hours | |
|
|
||
| Performance Characteristics | ||
| O.S. | Microsoft Windows CE 5.0, Multi-lingual(Chinese, English, Janpanese) | |
| CPU | 533MHZ | |
| Memory | ROM | F-ROM 256MB |
| RAM | RAM 128MB | |
| Expansion | Micro SD/TF slot (a maximum of 16 GB) | |
| Interfaces | USB, RS232(option) | |
|
|
||
| Barcode Scanner | ||
| 1D Laser | Scanning Rate | 200 scan/sec |
| Decode Capability |
Code 39; Codabar; Code 128; Discrete 2 of 5; IATA 2 of 5; Interleaved 2 of 5; |
|
|
Code 93; UPC A; UPC E0; EAN 8; EAN 13; MSI; EAN 128; UPC E1; Trioptic Code 39; Bookland EAN; Coupon Code; RSS-Limited; RSS-14; RSS-Expanded; |
||
| 2D CMOS | Decode Capability |
QR Code, PDF 417,Data Matrix, Micro QR Code, Micro PDF417,Aztec Code |
|
|
||
| Radio Communication | ||
| Wireless LAN |
Internal 802.11b/gwireless communication, Upto 54Mbps |
|
| WWAN Communication | Supports GSM/GPRS Class10 and GSM 07.10 multiplexing, wireless communication module | |
| Bluetooth | Bluetooth V2.1 + EDR | |
|
|
||
| Options | ||
| Camera | 2 million/3 million pixels and fill light | |
| GPS | 48 channels, support A-GPS | |
| RFID | Customizable,support | |
| LF | ISO11784/11785 | |
| HF | ISO15693,ISO14443A/B,SRI513/SRI4K,2.4GHz Active RFID Reader | |
|
|
||
| User Environment | ||
| Operating Temperature | –10°C to +50°C | |
| Storage Temperature | –20°C to +60°C | |
| Humidity | 5%–95% (no condensation) | |
| Drop Durability | Multiple drops to concrete: 4 ft./1.2m across the operating temperature range | |
| Sealing | IP54 standard for water and dust resistance | |
|
|
||
| Peripherals and Accessories | ||
| Cradles |
Double-slot charging dock:The reverse side for backup battery charging, |
|
| front side with slot can be directly used for data communication | ||
| Printers | Supports extensive line of COM printer and bluetooth printer | |
| Other Acceseries | Pouch, vehicle charger | |
|
|
||
| Regulatory | ||
| Product Certification | CCC, CE, ROHS | |
| Laser Safety | IEC2 Class /FDA Ⅱ Class,Compliance with IEC60825-/EN60825-1 Standard | |
| Warranty | 12 months (except the accessories) | |
