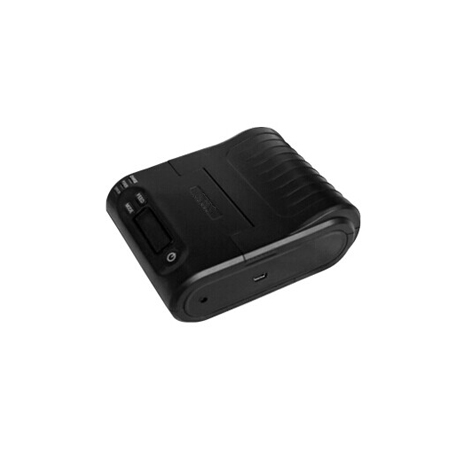

ACT-58zly
Dot matrix impact printing method Unique rugged design withstands droping up to 1.2 meters USB, Bluetooth, RF communication support Large paper capacity and long battery life LCD Display
|
Printing Method
|
Dot Matrix
|
|
Resolution
|
5 dots/mm（127dpi）,240 dots/line
|
|
Effective Printing Width
|
48mm
|
|
Printing Speed
|
5.5 mm/s
|
|
Character Set
|
ASCII,GB18030(Chinese), Big5
|
|
Print Font
|
ANK: 7x9, Chinese: 12 x 12/16 x 16
|
|
Self-defined Character
|
Yes
|
|
Graphic
|
Support bitmap downloading
|
|
SDK
|
Symbian/Windows Mobile/Windows CE/Blackberry/Android/Iphone
|
|
Driver
|
Windows XP
|
|
Paper End Sensor
|
Yes
|
|
Black Mark Location
|
Yes
|
|
Auto Sleeping
LCD Display
|
Yes
|
|
Interface
|
USB, Bluetooth, RF
|
|
Battery
|
DC7.4V,1.5A rechargeable Li-ion battery
|
|
Charger
|
DC9V/2A
|
|
TPH
|
1.5 Million lines
|
|
Paper Type
|
Plain paper
|
|
Paper Width
|
57.5± 0.5mm
|
|
Paper Thickness
|
0.06 to 0.08mm
|
|
Paper Roll Diameter
|
40mm(Max.)
|
|
Paper Supply Method
|
Semi-auto Loading
|
|
Paper Cutting Method
|
Manual
|
|
Operating Temp/Humidity
|
-10-50°C/10%-80%
|
|
Storage Temp/Humidity
|
-20-60°C / 10%-90%
|
|
Dimension (LxWxH)
|
112 x 98 x46mm
|
|
Weight
|
350g
|
