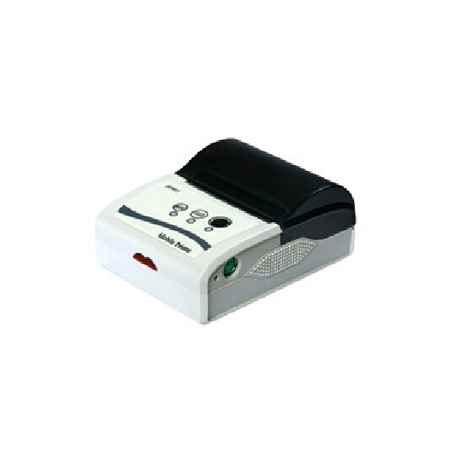

ACT-58ly
Light weight for taking conveniently Pocket size 102 x 77 x 36mm Direct thermal printing method Easy to use and simple to maintain Easy drop-in clamshell paper loading Continuing printing when battery in charging
Feature:
Light weight for taking conveniently
Pocket size 102 x 77 x 36mm
Direct thermal printing method
Easy to use and simple to maintain
Easy drop-in clamshell paper loading
Specification:
Printing Method
Thermal Line
Resolution
8 dots/mm, 384 dots/line
Effective Printing Width
48mm
Printing Speed
50mm/s(average)
Character Set
ASCII, GB18030(Chinese), BIG5
Print Font
ANK: 12 x24, 9 x24 Chinese: 24 x 24
Self-defined Character
Yes
Barcodes
EAN-13, EAN-8, UPC-A, UPC-E, CODE39,
CODE93, CODE128, CODABAR, INTERLEAVED 25
Driver
Windows XP/Windows Vista/Windows 7
Graphic
Support bitmap downloading
Paper End Sensor
Yes
Overheating Protection
Yes
Black Mark Location
Yes
Auto Sleeping
Yes
Interface
TIII-BT:RS-232+Bluetooth;TIII-Ir:RS-232+IrDA; TIII: RS-232
Battery
DC7.4V,1.5A rechargeable Li-ion battery
Charger
DC9V/2A
Battery Power Alarm
Yes
TPH
50km
Paper Type
Thermal paper
Paper Width
57.5± 0.5mm
Paper Thickness
0.06 to 0.08mm
Paper Roll Diameter
40mm (Max.)
Paper Supply Method
Drop-in Easy loading
Paper Cutting Method
Manual
Operating Temp/Humidity
0-50°C/10%-80%
Storage Temp/Humidity
-20-60°C / 10%-90%
Dimension (LxWxH)
103 x 77.4 x36mm
Weight
275g
