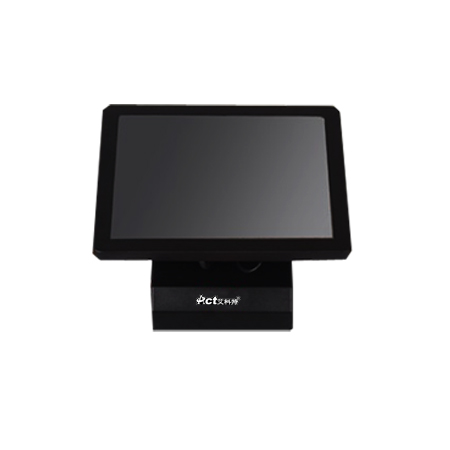

Touch Z series
with high performance of 5-wire touch solution and graceful appearance, satisfy the hidg demand of nowadays customers. They are of outstanding features to be used in retail and hospitality locations, such as Hotel, Bars, Supermarket etc.
with high performance of 5-wire touch solution and graceful appearance, satisfy the hidg demand of nowadays customers.
They are of outstanding features to be used in retail and hospitality locations, such as Hotel, Bars, Supermarket etc.
| Specification | |
| Processor | Intel ATOM D525, 1.8GHz |
| System Memory | DDR3 1 x 2GB Standard |
| Power Supply | 100~240V/3.5A 47~63Hz |
| Storage Device | 1 x 2.5” SATA HDD 320G |
| Hosing Color | Black |
| Touch LCD Display | |
| Size / Resolution | 15” TFT LCD / 1024 x 768 |
| Touch Screen | 5-wires resistive, 20,000,000 times touch life |
| I/O Ports | |
| Serial Port | 4 x DB9 |
| USB Port | 4 x USB |
| Cash Drawer Port | 1 x RJ11 (12V / 24V) |
| LAN Port | 1 x 10/100/1000 Mbps |
| Audio Port | 1 x Line out, 1 x Mic in |
| VGA Port | 1 x VGA (DB15) |
| Customer Display | |
| View | 45 Degree adjustable |
| OS Supported | |
| Windows | Windows XP,Windows 7,POS Ready 2009,POS Ready 7 |
| Linux | Per Request |
| Environment | |
| EMI/Safety | CE, FCC Class B |
| Operation Temperature | 0 ~ 45℃ (32℉ ~ 113℉) |
| Storage Temperature | -20 ~ 60℃ (-4℉ ~ 140℉) |
| Humidity | 38 ~ 80% (Non-condensing) |
