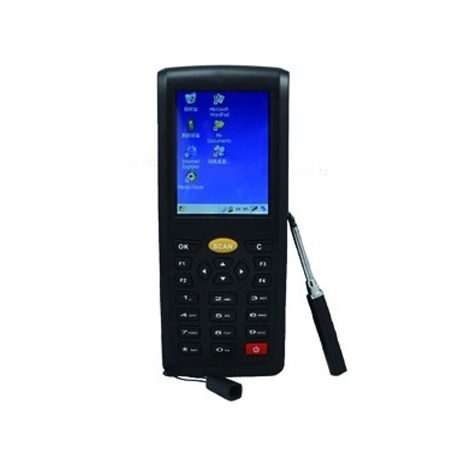

ACT-9898
Integrated WiFi and Bluetooth communication; Standard 1D scanning with optional 2D and RFID reading; 64MB+128MB memory, extendable to 8G; 2.8” touch screen color display; 2800mA POLYMER-Lithium-ion battery.
|
Main Unit
|
|
|
|
Model
|
ACT-9898
|
|
|
Color
|
Frosted black
|
|
|
Operating System
|
Windows CE 5.0
|
|
|
CPU speed
|
400MHz
|
|
|
Memory
|
|
|
|
RAM
|
64KB
|
|
|
ROM
|
128MB
|
|
|
|
MicroSD (TF), max. 8G
|
|
|
Screen
|
|
|
|
size
|
2.8” touch screen
|
|
|
color
|
16bit true color（65536 colors）
|
|
|
resolution
|
240*320 TFT
|
|
|
Physical
|
|
|
|
Battery
|
Rechargeable Lithium-ion （3.7V，2800mAh）
|
|
|
Working time
|
6 hours
|
|
|
Standby
|
15 days
|
|
|
Dimension
|
150mm×63mm×31mm
|
|
|
Material
|
ABS + silicone
|
|
|
Charging indicator
|
LCD
|
|
|
Working current
|
420mA
|
|
|
Standby current
|
6mA
|
|
|
EMC
|
CE & FCC DOC compliance
|
|
|
Scanning
|
|
|
|
Light Source
|
650nm Laser Diode
|
|
|
Decode Rate
|
45±2 scans / second
|
|
|
Resolution
|
4mil
|
|
|
Scan width
|
20mm@window，100mm@100mm
|
|
|
Depth of Field
|
0～250mm
|
|
|
indicator
|
beeper，LCD
|
|
|
Barcode supported
|
EAN-8，EAN-13，UPC-A，UPC-E，Code 39，Code 93，Code 128，EAN128，Codaber，Industoal 2 of 5，Interleave 2 of 5，Matrix 2 of 5，MSI…
|
|
|
Transmission
|
|
|
|
Cable
|
USB 2.0
|
|
|
wireless
|
WiFi & Bluetooth
|
|
|
Environment
|
|
|
|
Operating Temperature
|
0℃～45℃
|
|
|
Storage Temperature
|
-20℃～60℃
|
|
|
Humidity
|
5%～95% (non-condensing)
|
|
|
Lumination
|
Max.5,000 Lux（Fluorescence）
|
|
