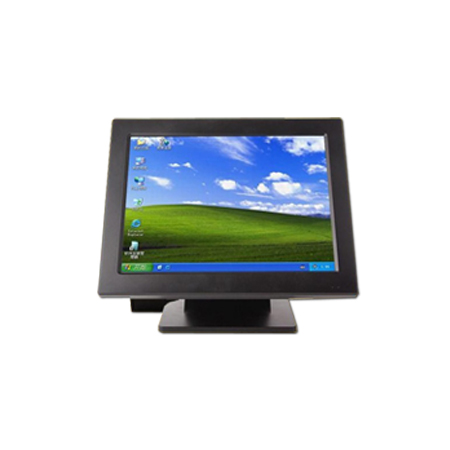

Touch F series
1.Housing made by Aluminum 2.Fan and Fan less system optional 3.True flat water proof touch screen 4.Easy to maintance, just loose three screws if change RAM and SSD 5.Various options of peripherals Aluminum
HIGHLIGHTS
1. Housing made by Aluminum
2. Fan and Fan less system optional
3. True flat water proof touch screen
4. Easy to maintance,Just loose three screws if change RAM and SSD
5. Various options of peripherals Aluminum
SPECIFICATION
|
CPU |
Intel® Celeron® Processor 1037U |
|
Memory |
1 x DDR3 2GB |
|
Network |
RTL8168DE PCI-E Gigabit Ethernet NIC |
|
Power Supply |
100-240V/ 3.5A 47~63Hz |
|
Video Card |
Intel Graphics Media |
|
Sound Card |
Accelerator3150(256MB/Intel)RTL ALC662 @INTEL 82801G(ICH7)High Definition Audio |
|
Dimension |
350x200x330mm(WxDxH) |
|
O.S. Compliant |
Windows XP / VISTA/WIN7 |
|
HDD |
M-SATA 32 G or 1 x 2.5" SATA HDD 320GB optional |
|
I/O PORTS |
USB: 4 x USB 2.0 port Serial Port: 2 x DB-9 LAN: 1 x 10/100/1000 Mbps Audio: Interface x 2 VGA: 1 x DB-15 VGA Interface HDMI: 1 x HDMI |
|
DISPLAY |
Viewing Angle: 45 degree for dual screens adjustable Operator Display: 15" TFT LCD Max. Resolution: 15" 1024 x 768 Touch Screen: Flat 5-wires resistive 20,000,000 times touch life Secondary Display: 12" TFT LCD Max. Resolution: 12" 1024 x 768 |
|
ENVIRONMENT |
Operation Temperature: 0~40℃ Storage Temperature: - 40~50℃ Humidity: 38~80%℃ |
