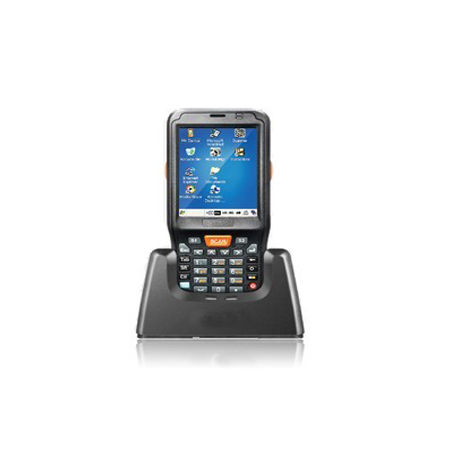

ACT-9300
High-performance barcode scanner HF RFID reader 5.0 M mega pixel camera GPS IEEE 802.11 b/g/n WiFi Highly optimized WindowsCE operating system Ergonomic design with wrist strap IP54 waterproof and dustproof 1.2 m drop resistance 3.8 V 4500 mAh large capacity battery for critical requirements POGO PIN interface for convenient charging with optional Urovo cradle
Product Superiority
Compact & Portable / Ergonomic design
1D & 2D / HF RFID
IP54 sealing / 4500mAh battery / POGO PIN
--------------------------------------------------------------------------------------------------------
Product Feature
High-performance barcode scanner
HF RFID reader
5.0 M mega pixel camera
GPS
IEEE 802.11 b/g/n WiFi
Highly optimized WindowsCE operating system
Ergonomic design with wrist strap
IP54 waterproof and dustproof
1.2 m drop resistance
3.8 V 4500 mAh large capacity battery for critical requirements
POGO PIN interface for convenient charging with optional Urovo cradle
Physical Characteristics
|
Model
|
ACT-9300 |
||
Dimentions
|
152mm*69mm*29mm (max)
152mm*64mm*27mm (min)
|
|||
Weight
|
320g (including battery)
|
|||
Keyboard
|
Number/Alphabetic keys, directional keys, function keys, and scan buttons
|
|||
Input
|
Chinese, English, supports soft keyboard
|
|||
--------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
||||
Performance Characteristics
|
O.S.
|
Microsoft Windows CE 5.0 (multi-language)
|
||
CPU
|
533 MHZ
|
|||
Display
|
3.2 inch TFT-LCD QVGA (240x320) color touch screen
|
|||
Memory
|
ROM
|
256 MB Nand Flash
|
||
RAM
|
128 MB
|
|||
---------------------------------------------------------------------------------------------------------------------------------------------------------------------
|
||||
Barcode Scanner
|
1D Laser
|
Scanning Rate
|
200 times/sec.
|
|
Decode Capability
|
Code 39; Codabar; Code 128; Discrete 2 of 5; IATA 2 of 5; Interleaved 2 of 5; Code 93; UPC A; UPC E0; EAN 8; EAN 13; MSI; EAN 128; UPC E1; Trioptic Code 39; Bookland EAN; Coupon Code; RSS-Limited; RSS-14; RSS-Expanded.
|
|||
2D CMOS
(Optional)
|
Decode Capability
|
1D Symbologies: UPC/EAN, Bookland EAN, UCC Coupon Code, ESSN EAN, CODE 39, CODE 128, GS1-128, ISBT 128, Trioptic Code 39, CODABAR, MSI, Interleaved 2/5, Discrete 2/5, Chinese2/5, Korean3/5, Matrix 2/5, CODE 32, CODE 93, CODE 11, Inverse 1D, GS1 DataBar, Composite Codes.
2D Symbologies: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, MaxiCode, QR Code, Aztec, Aztec Inverse.
Postal Codes: U.S. Postnet, U.S. Planet, U.K. Postal, Japan Postal, Australian Postal, Netherlands KIX Code, USPS 4CB / One Code / Intelligent Mail, UPU FICS Postal.
|
||
---------------------------------------------------------------------------------------------------------------------------------------------------------------------
|
|
|||
Radio Communication
|
WiFi (WLAN)
|
Supports 802.11 b/g/n, the maximum rate of 65 Mbps
Supports 802.11 I: AES, TKIP, WEP, WPA, WPA2
Supports bluetooth coexist, fast seamless roaming
|
||
WWAN
|
Built-in wireless network communication GSM / GPRS module
Frequency Range: GSM850 / 900 / 1800 / 1900 MHz
GPRS multi-slot Class 10: DL 85.6 kbps / UL 42.8 kbps
GPRS multi-slot Class 8: DL 85.6 kbps / UL 21.4 kbps
|
|||
Bluetooth
|
Bluetooth Class 2.1 + EDR
|
|||
---------------------------------------------------------------------------------------------------------------------------------------------------------------------
|
||||
Options
|
Camera
|
5.0M mega pixels with flash and automatic focus
|
||
GPS
|
High precision GPS
|
|||
RFID
|
High frequency, support agreement: ISO15693, ISO14443A/B
|
|||
---------------------------------------------------------------------------------------------------------------------------------------------------------------------
|
||||
Power
|
Main Battery
|
3.8V 4500mAh rechargeable lithium battery, which can work for 12 hours or above (depending on environment)
|
||
Slave Battery
|
240 mAh standby battery
|
|||
---------------------------------------------------------------------------------------------------------------------------------------------------------------------
|
||||
User Environment
|
Operating Temperature
|
–10°C to +50°C
|
||
Storage Temperature
|
–20°C to +60°C
|
|||
Humidity
|
5%~95% (non-condensing)
|
|||
Drop Durability
|
4ft. / 1.2m multiple drops to concrete across the operating temperature range
|
|||
---------------------------------------------------------------------------------------------------------------------------------------------------------------------
|
||||
Peripherals and Accessories
|
Expansion Card Slot
|
Micro SD/TF (max 32G), SIM x 1
|
||
Physical Interface
|
Mini USB x 1, 3.5mm audio interface x 1, DC Jack x 1, POGO PIN interface x 1
|
|||
Charging Dock
|
Optional single slot dock: supports to charge one unit of device and one spare battery simultaneously
|
|||
Printers
|
Supports bluetooth printer
|
|||
Other Accessories
|
Standard equipped with handwritten pen, wrist strap; Optional with carrying pouch
|
|||
---------------------------------------------------------------------------------------------------------------------------------------------------------------------
|
||||
Regulatory
|
Sealing
|
IP54
|
||
Product Certification
|
CCC, CE, FCC
|
|||
Laser Safety
|
IEC Class 2 / FDA Class II, in accordance with IEC60825-1 / EN60825-1
|
|||
Warranty
|
12 months (except the accessories)
|
|||
