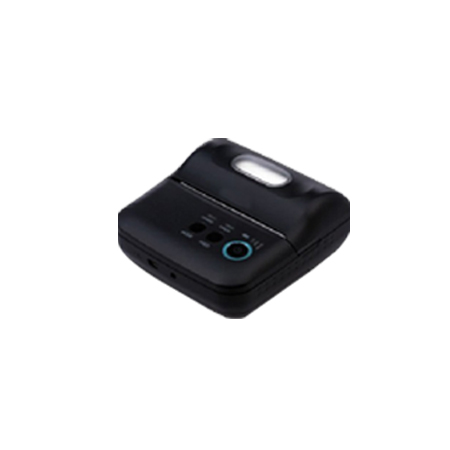

ACT-80LY
Mobile thermal receipt printer Portable POS terminal Direct thermal printing method Quick and efficient printing Rugged design withstands drop up to 1.2m Long lasting lithium-ion battery (7.4V/2,100mAh) Easy drop-in clamshell paper loading Supports wide variety of serial and wireless communication options Continuous printing even battery is charging Easy to store setup parameters by setup tools
Specification:
|
Printing Method
|
Thermal Line
|
|
Resolution
|
8 dots/mm, 576 dots/line
|
|
Effective Printing Width
|
72mm
|
|
Printing Speed
|
80mm/s
|
|
Character Set
|
ASCII,GB18030(Chinese), BIG5
|
|
Print Font
|
ANK: 12 x 24 Chinese: 24 x 24
|
|
Self-defined Character
|
Yes
|
|
Barcodes
|
1D:UPC-A, UPC-E, EAN-13, EAN-8,CODE39,
ITF25 ,CODABAR, CODE93, CODE128 2D:PDF417, QR code, DATA Matrix |
|
Graphic
|
Support bitmap downloading
|
|
SDK
|
Symbian/Windows Mobile/Windows CE/Blackberry/Android
|
|
Driver
|
Windows XP/Windows Vista/Windows 7
|
|
Paper End Sensor
|
Yes
|
|
Black Mark Location
|
Yes
|
|
Auto Sleeping
|
Yes
|
|
Buzzer
|
Yes
|
|
Interface
|
T9-BT: USB+Bluetooth T9-U: USB
|
|
Battery
|
7.4V DC/1.5A rechargeable Li-ion
|
|
Charger
|
9V DC/2A
|
|
TPH
|
50km
|
|
Paper Type
|
Thermal paper
|
|
Paper Width
|
79.5± 0.5mm
|
|
Paper Thickness
|
0.06 to 0.08mm
|
|
Paper Roll Diameter
|
40mm(Max.)
|
|
Paper Supply Method
|
Drop-in Easy loading
|
|
Paper Cutting Method
|
Manual
|
|
Operating Temp/Humidity
|
0-50°C/10%-80%
|
|
Storage Temp/Humidity
|
-20-60°C / 10%-90%
|
|
Dimension (LxWxH)
|
103 x 99 x 46mm
|
|
Weight
|
250g
|
