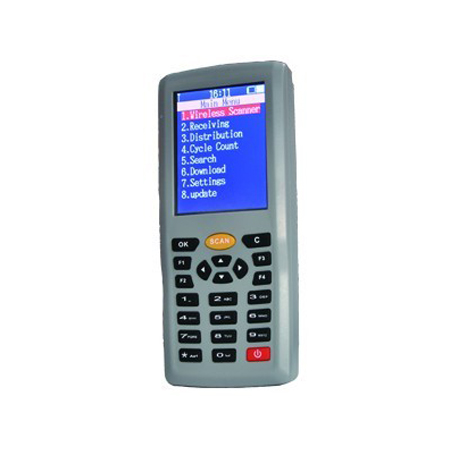

 ACT-6300

 Cordless Scanner and Wireless Inventory handheld functions integrated; Item name displays right after the barcode is scanned; Program refreshing supported; TXT or EXCEL file created as soon as data is uploaded; Use as a USB flash disk (optional)



Main Functions:
n Cordless Scanner and Wireless Inventory handheld functions integrated;
n Item name displays right after the barcode is scanned;
n Program refreshing supported;
n TXT or EXCEL file created as soon as data is uploaded;
n Use as a USB flash disk (optional)

Technical Parameters:



Main Unit

Model
OBM-9800
Color
Frosted white
CPU speed
48MHz
Memory

RAM
64KB
ROM
16MB (optional 32MB)
SCREEN

size
2.8”
color
16bit true color(65536 colors)
resolution
240*320 TFT
Physical

Battery
Rechargeable Lithium-ion (3.7V,2800mAh)
Working time
8 hours
Standby
15 days
Dimension
150mm×63mm×31mm

Material
ABS + silicone

Charging indicator
LCD

Working current
190mA

Standby current
40mA

EMC
CE & FCC DOC compliance

Scanning

Light Source
650nm

Decode Rate
45±2 scans / second

Resolution
4mil

Scan width
20mm@window,100mm@100mm

Depth of Field
0~250mm(0.33mm,PCS 90%)

indicator
beeper,LCD

Barcode supported
EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codaber,Industoal 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI
