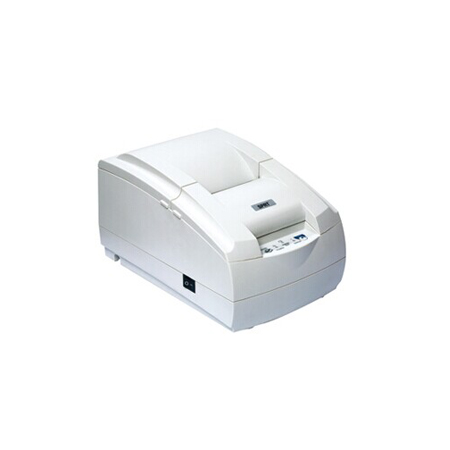

ACT-7645Z
Versatile and adaptable Selectable auto cutter Support black mark printing Easy to use and simple to maintain Semi-auto loading for paper replacement
Feature:
|
Printing Method
|
Dot Matrix
|
|
Resolution
|
42cpl-210(whole dot)/420(half dot)
|
|
Effective Printing Width
|
66mm
|
|
Printing Speed
|
76mm paper: 4.4 lps
|
|
Character Set
|
ASCII, GB18030(Chinese),
|
|
Self-defined Character
|
YES
|
|
Print Font
|
Font A: 7x7 Font B:5x7 Chinese: 16 x 16
|
|
Graphic
|
Support bitmap downloading
|
|
Paper End Sensor
|
YES
|
|
Black Mark Location
|
Yes
|
|
Interface
|
RS-232/Parallel/USB/Ethernet
|
|
Cash Drawer Control
|
DC24V,1A, 6PIN RJ-11Socket
|
|
Power Supply (Adapter)
|
AC100 ~240V ± 10%(include) DC 24V, 2A
|
|
MCBF
|
9 million lines
|
|
Paper Type
|
Plain Paper
|
|
Paper Width
|
76.0± 0.5mm
|
|
Paper Thickness
|
0.06 to 0.08mm
|
|
Paper Roll Diameter
|
80mm(Max.)
|
|
Paper Supply Method
|
Semi-auto Loading
|
|
Auto Cutter
|
Partial Cut
|
|
Operating Temp/Humidity
|
0-50°C/10%-80%
|
|
Storage Temp/Humidity
|
-20-60°C / 10%-90%
|
|
Dimension (LxWxH)
|
248 x160x142 mm
|
