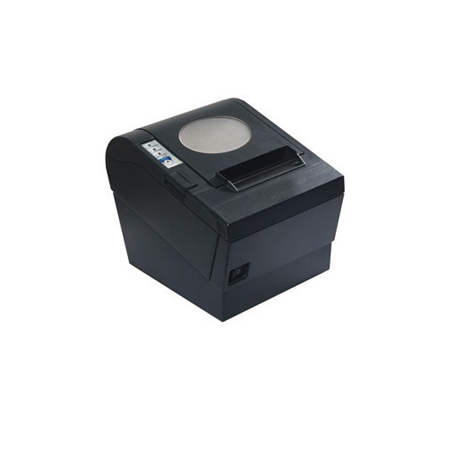

ACT-80MHZ
Versatile and adaptable Fast print speed at 250mm/s Easy to use and simple to maintain Easy paper loading for paper replacement Support printing graphics and barcode Complete compatibility with EPSON & SAMSUNG
|
Printing Method
|
Thermal Line
|
|
Resolution
|
8dots/mm, 576dots/line
|
|
Effective Printing Width
|
72mm
|
|
Printing Speed
|
220 mm/s
|
|
Character Set
|
ASCII, GB18030(Chinese),BIG5
|
|
Self-defined Character
|
Yes
|
|
Print Font
|
Font A: 7x9 Font B:9x9 Chinese: 16 x 16
|
|
Barcode
|
UPC-A，UPC-C，EAN-13，EAN-8，CODE39，ITF25，CODEBAR，CODE93，CODE128
|
|
Graphic
|
Support bitmap downloading
|
|
Paper End Sensor
|
YES
|
|
Overheating Protection
|
YES
|
|
Interface
|
RS-232/Parallel/USB/Ethernet
|
|
Cash drawer control
|
DC24V,1A, 6PIN RJ-11Socket
|
|
Power Supply (Adapter)
|
AC100 ~240V ± 10%(include) DC 24V, 2A
|
|
TPH
|
100KM
|
|
Auto Cutter
|
5,000,000 cuts
|
|
Paper Type
|
Thermal paper
|
|
Paper Width
|
79.5± 0.5mm
|
|
Paper Thickness
|
0.06 to 0.08mm
|
|
Paper Roll Diameter
|
Max. 80mm
|
|
Auto Cutter
|
Partial Cut
|
|
Operating Temp/Humidity
|
5-50°C/10%-80%
|
|
Storage Temp/Humidity
|
-20-60°C / 10%-90%
|
|
Dimension (LxWxH)
|
192 x 150 x150 mm
|
