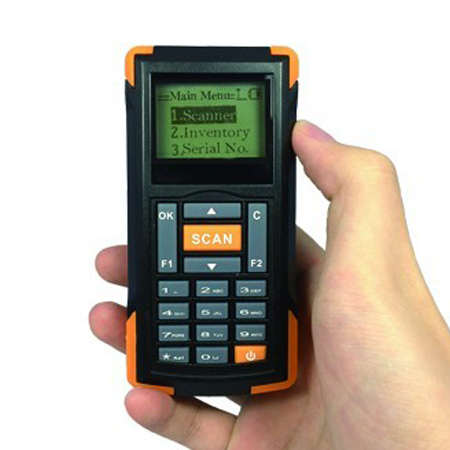

 ACT-6000

  SIMPLE Distinct function area for fast switch and straightforward operation nSAFE Supports real-time, storage and batch transmission nWIRELESS Adopts mainstream wireless and storage technology, free from cables nCAMPACT Cell phone size, easy to carry with comfortable feel

Features:
nSIMPLE
Distinct function area for fast switch and straightforward operation
nSAFE
Supports real-time, storage and batch transmission
nWIRELESS
Adopts mainstream wireless and storage technology, free from cables
nCAMPACT
Cell phone size, easy to carry with comfortable feel

※Radio Specifications: (optional Bluetooth or 433MHz)
BLUETOOTH

Frequency
ISM band,2.400~2.483MHz
Rate of Transmission
2Mbps
Output Power
Bluetooth Class2,3dBm
Regulatory
Bluetooth 2.1 compliance
Transmission Coverage
10M visibility range (Max.)
Antenna
Integrated PCB
433MHz

Frequency
ISM band,433MHz
modulation
GFSK
Rate of Transmission
50Kbps
Output Power
20dBm (max)
Transmission Coverage
300M visibility range(Max.)
Antenna
Integrated PCB

※Performance Characteristics:
Light Source
650nm Laser Diode
Scan Pattern
Single line
Scan Rate
45±2 /sec
Scan Precision
4mil
Scan Width
20mm@window,220mm@200mm
Depth of Field
0~500mm
Roll(Till)
30°
Pitch
65°
Skew(Yaw)
55°
Resolution
30% minimum reflectance
Operating Mode
Continuous  / itemized scanning
Error Rate
1 million-to-one
Indicator
beeper,LCD
Decode Capability
EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codaber,Industoal 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI…
Interfaces supported
Mini USB receiver,optional RS232 or PS2

※Electrical Parameters:
Receiver Voltage
DC5V
Receiver Current
120mA
Battery
Rechargeable lithium ion battery (3.7V ,1700mAh)
Charging Indicator
LCD
Stockcount   Working current
150mA
Stockcount    Standby Current
50mA
Laser Safety
national classII regulatory
EMC
CE & FCC DOC compliance

※Physical Characteristics:
Memory
4M
keypad
17 keys
Stockcount Dimensions
102mm×46mm×28mm
Material
ABS + silicon

※User Environment:
Operating Temperature
0℃~45℃
Storage Temperature
-20℃~60℃
Humidity
5%~95% (non-condensing)
Ambient Light Immunity
Max.5,000 Lux(fluorescent)
