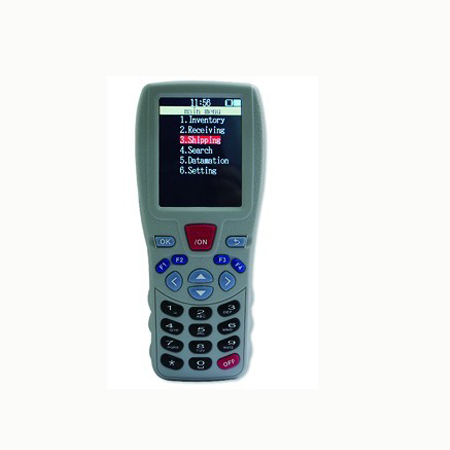

 ACT-8500

 Features: 1. MULTI-FUNCTIONAL Covers the full circulation of commodity: receiving, shipping, cycle count, replenishment and defect report 2. RECONIZABLE Supports download of item file: barcode scanned matches to the item automatically and displays on screen right away 3. SIMPLE 2.8” color display and graphical menu makes it easy to understand 4. EFFICIENT Report is automatically generated right after inventory count, 90% savings on time, manpower and administrative overhead 5. SAFE Supports real-time, storage and batch transmission 6. ENDURING 2800mA POLYMER-Lithium-ion battery ensures long working



Features:
1.     MULTI-FUNCTIONAL
Covers the full circulation of commodity: receiving, shipping, cycle count, replenishment and defect report
2.     RECONIZABLE
Supports download of item file: barcode scanned matches to the item automatically and displays on screen right away
3.     SIMPLE
2.8” color display and graphical menu makes it easy to understand
4.     EFFICIENT
Report is automatically generated right after inventory count, 90% savings on time, manpower and administrative overhead
5.     SAFE
Supports real-time, storage and batch transmission
6.     ENDURING
2800mA POLYMER-Lithium-ion battery ensures long working hours



TECHNICAL PARAMETERS
※Performance Characteristics:

Light Source
650nm Laser
Scan Pattern
Single line
Scan Rate
45±2 /sec
Scan Precision
4mil
Scan Width
20mm@window,100mm@100mm
Depth of Field
0~250mm(0.33mm,PCS 90%)
Roll(Till)
30°
Pitch
65°
Skew(Yaw)
55°
Resolution
30% minimum reflectance
Operating Mode
Continuous  / itemized scanning
Error Rate
1 million-to-one
Indicator
beeper,LCD
Decode Capability
EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codaber,Industoal 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI…
Interfaces supported
Mini USB receiver,optional RS232 or PS2


※Electrical Parameters:

Battery
Rechargeable lithium ion battery (3.7V ,2800mAh)
Charging Indicator
LCD display
Working current
120mA
Standby Current
40mA
Laser Safety
national class2 regulatory
EMC
CE & FCC DOC compliance


※Physical Characteristics:

Memory
16M
keypad
23
Dimensions
160mm×68mm×29mm
Material
ABS + silicon


※User Environment:

Operating Temperature
0℃~45℃
Storage Temperature
-20℃~60℃
Humidity
5%~95% (non-condensing)
Ambient Light Immunity
Max.5,000 Lux(fluorescent)
